Zap. konektorů
USB
USB MINI
| 1 | VCC | + 5 V |
| 2 | D- | Data - |
| 3 | D+ | Data + |
| 4 | GND | Zem |
| 1 | VCC | + 5 V |
| 2 | D- | Data - |
| 3 | D+ | Data + |
| 4 | ID | ID |
| 5 | GND | Zem |

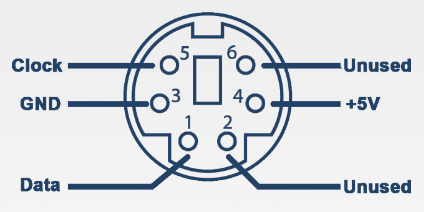

PS/2
SATA
| 1 | Data | Data |
| 2 | nc | nezapojeno |
| 3 | GND | Zem |
| 4 | + 5 V | VCC |
| 5 | Clock | hodiny |
| 6 | nc | nezapojeno |
| 1 | GND | Zem | 5 | B- | B- Recieve |
| 2 | A+ | A+ Transmit | 6 | B+ | B+ Recieve |
| 3 | A- | A- Transmit | 7 | GND | Zem |
| 4 | GND | Zem |
